MODEL: TP-DC-1256G-VHP

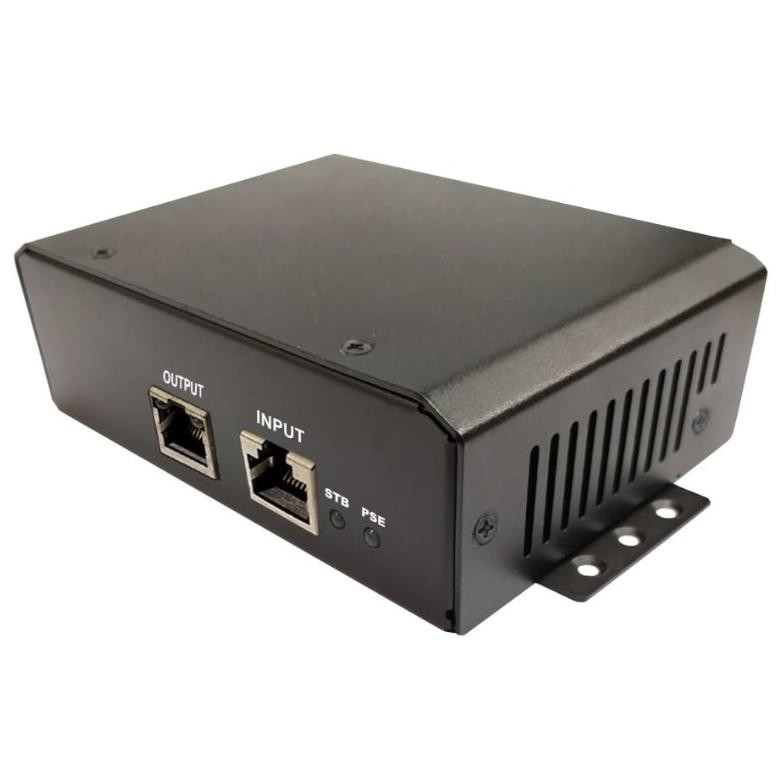

The TP-DC-1256G-VHP and TP-DC-1256GD-VHP, offered by Tycon Power®, are advanced DC to DC converters and PoE inserters specifically designed for high-power applications. These include Ubiquiti airFiber™ antenna systems and Axis High Power PoE PTZ security cameras, as well as other devices requiring robust passive or active PoE. By supplying 56VDC PoE power on all eight Ethernet wires (4 pairs), these units deliver reliable and consistent power for demanding devices.

Versatile Power Options with Seamless Performance

Wide Input Voltage Range

With an input range of 10VDC to 60VDC, these DC to DC Converters are universally compatible with battery-powered applications. This flexibility ensures they perform reliably across various systems and power environments.

Input and Output Isolation

The TP-DC-1256G-VHP and TP-DC-1256GD-VHP feature isolated inputs and outputs. This design enables them to operate seamlessly in negative ground and positive ground systems, enhancing safety and reducing interference.

Dual Power Source Redundancy

To ensure uninterrupted operation, these units include two DC inputs, allowing the connection of a primary and backup power source. This redundancy makes them ideal for critical applications where reliability is non-negotiable.

Built for Durability and Protection

Advanced Protection Features

Both units are equipped with robust safeguards, including:

• Low voltage protection
• Surge protection
• Short circuit protection
• Overload protection

These mechanisms protect connected devices while extending the longevity of the PoE inserters.

Rugged Construction

Housed in durable metal casings, these units withstand challenging environmental conditions. Their DIN Rail mounting kit simplifies installation, making them suitable for industrial and commercial applications.

Ideal for High-Power and Remote Applications

Whether powering high-power PoE devices, such as security cameras or antenna systems, or supporting remote systems, the TP-DC-1256G-VHP and TP-DC-1256GD-VHP offer an efficient and reliable solution. Their versatile design, robust protection features, and dependable performance make them essential components for modern network infrastructures.

Features – DC to DC Converter

• DC to DC Converter
• Input Voltage 10VDC to 60VDC
• 8 wire (4 Pair) 56VDC High PoE Output
• High Power Output to 70W
• Dual DC Inputs for Connecting 2 Power Sources
• 5 Gigabit Data Throughput
• Low Voltage Disconnect Feature
• Short Circuit, Over Current and Reverse/Over Voltage Protection
• Industrial Temperature Range to 70C

Applications

• 12VDC / 24VDC Remote Power Systems
• 48VDC or -48VDC Remote Power Systems
• Ubiquiti airFiber™ Antennas
• Axis Q6032-E, Q6034-E and Q6035-E PTZ Security Cameras
• High PoE 4 Pair Powered Cameras and Radio’s
